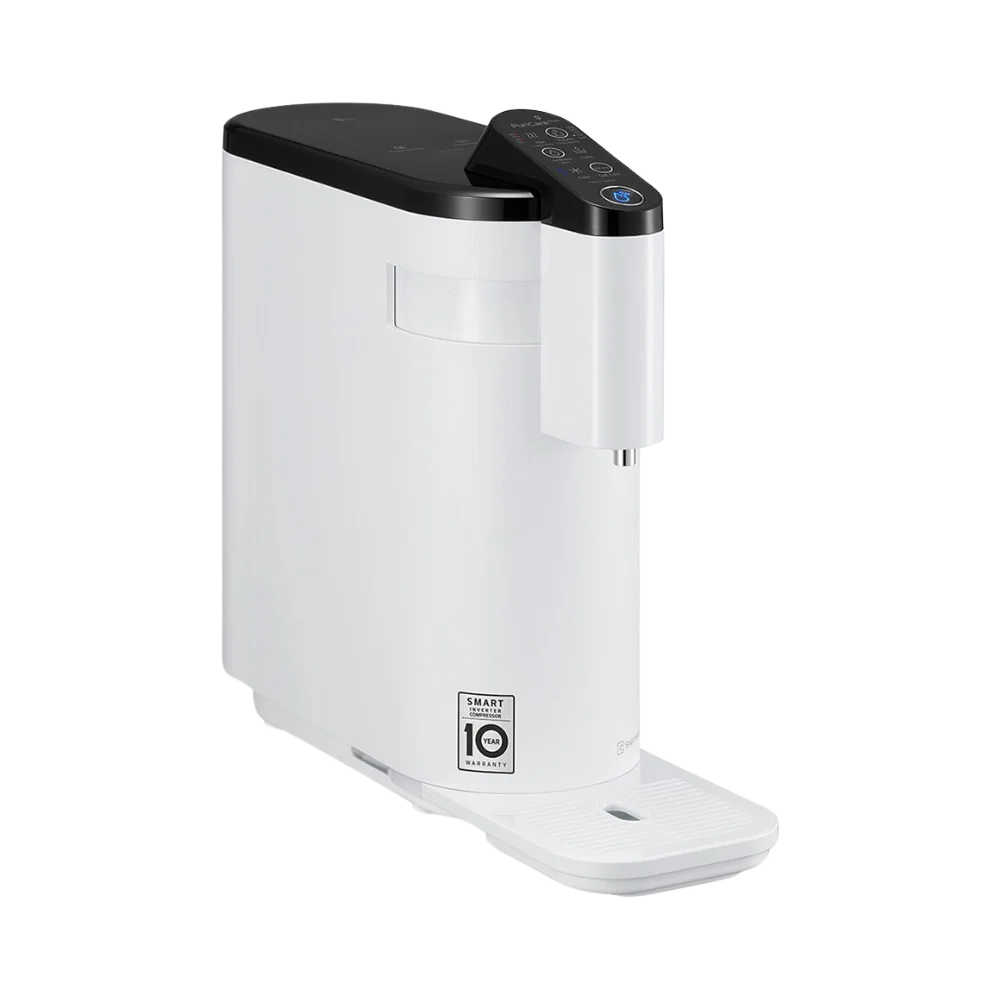

LG Puricare Water Purifier Easy Filter Replacement
Just twist and pull to quickly replace the filter
Clean waterways thoroughly.
high-temperature sterilization of Internal stainless steel pipe.
*’Internal Sterilize’ automatically sterilizes cold, hot, and ambient internal pipes once a week, and sterilize including the cold water module, once every 4 weeks.
*In case of manual operation, ‘Internal Sterilize’ sterilize including cold water module.
*’Internal Sterilize’ takes about 15 minutes excluding the cold water module and about 30 minutes including the cold water module, and you can check the sterilization usage information through the LG ThinQ app.
*If you turn off the sterilization scheduler in the LG ThinQ app, it will not work automatically.
*If an abnormality occurs in the product during sterilization, the function may not operate normally.
*The image of the product are for illustration purpose only and may differ from actual product.
High-temperature sterilization of the water outlet for peace of mind.
*Be careful of dispensing hot water when ‘Outlet Sterilize’ operate.
*’Outlet Sterilize’ takes about 10 minutes, and you can check the sterilization usage information through the LG ThinQ app.
*The image of the product are for illustration purpose only and may differ from actual product.
environment such as ambient temperature. (21.05)
– Test bacteria: E. coli, S. aureus, P. aeruginosa (3 types of bacteria were selected among indicator bacteria for evaluation of sterilization performance and drinking water quality standards)
– Test Methods
1) Floating bacteria: At an ambient temperature of 25±5℃, after contaminating the internal pipe of the water purifier with water containing test bacteria, operate the sterilization function, and compare the degree of reduction in the number of viable bacteria before and after the sterilization function.
2) Adhesive bacteria: At an ambient temperature of 25±5℃, after forming a biofilm to the internal pipe of water purifier by attaching test bacteria for more than 5 to 7 days, operate the sterilization function, and compare the degree of reduction in the number of viable bacteria before and after the
sterilization function.
*The sterilization range is filter and the internal pipe from the filter to the water outlet.
*The image of the product are for illustration purpose only and may differ from actual product
*UVnano is a compound word of UV (ultraviolet light) and nanometer (unit of length).
*The 99.99% sterilizing power of inside of water outlet is the test result conducted by Korean test institutes KTL(21.3), KCL(21.2) for UV-LED module based on the LG’s internal evaluation method. And there may be differences depending on the operating environment such as ambient temperature.
– Test method: At an ambient temperature of 25±5℃, after filling inside of water outlet with water containing test bacteria, operate ‘Self Care’ for 24 hours, and compare the degree of reduction in the number of viable bacteria before and after the sterilization function.
– Test bacteria: E. coli, S. aureus, P. aeruginosa (3 types of bacteria were selected among indicator bacteria for evaluation of sterilization performance and drinking water quality standards)
*The image of the product are for illustration purpose only and may differ from actual product.
*Issued by the Korea Institute for Water Technology Cerification(KIWATEC) according to the Law for the management of Drinking water. This is based on the quality inspection report, and may differ depending on the actual use environment.
– Heavy metals: remove more than the standard of mercury, lead, iron, aluminum, copper, arsenic, cadmium, zinc, manganese
– Remove more than the standard of 19 organic chemicals, 4 pesticides, 1 microorganism, and 4 mandatory water purification performance items.
*The pore size of the UF is 0.1-0.3㎛, which can remove fine particles and bacteria larger than that size, and at the same time passes the ionic minerals below the size without removing it.
*Norovirus 99.99% removal is the test result measured under the limited conditions of Norogen (20.6) based on the LG’s internal evaluation method. And there may be differences depending on the operating environment.
(When 3,600L was passed through the filter at a flow rate of 2.0LPM, 0.6L of norovirus with a concentration of 1.0×10^4PFU/ml or higher was passed at a flow rate of 1.0LPM, and the amount of norovirus in the water that passed through was measured)
*The image of the product are for illustration purpose only and may differ from actual product.
*To use this function, you need to install the LG ThinQ app from the Android OS (more than 7.0) Play Store or iOS (more than 12.0) AppStore, need to register and connect the product..
*For detailed instructions on how to use the app, please refer to SMART FUNCTIONS section in the User Manual.
*Also, when first connecting to water purifier, it must be in the same Wi-Fi environment, and after that, the water purifier must always operate within the registered Wi-Fi environment.
*To use this function, you need to install the LG ThinQ app from the Android OS (more than 7.0) Play Store or iOS (more than 12.0) AppStore, need to register and connect the product..
*For detailed instructions on how to use the app, please refer to SMART FUNCTIONS section in the User Manual.
*Also, when first connecting to water purifier, it must be in the same Wi-Fi environment, and after that, the water purifier must always operate within the registered Wi-Fi environment.
TIP. How to perform Self-Service?
high-temperature sterilization
Press the internal sterilization and outlet sterilization buttons on the top of the product for more than 3 seconds.
Easy Filter Replacement
Simply replace the filter conveniently delivered on schedule.
DIMENSIONS
SUMMARY
DIMENSION (W X H X D), MM
170 x 419 x 550
TYPE OF FILTER
UF (Ultra Filtration)
KEY FEATURE
Total Self Service
KEY FEATURE
Tankless (Instant Hot & Cold & Ambient Water)
DIMENSION
Dimension (W x H x D), mm – with Tray
170 x 419 x 550
Dimension (W x H x D), mm – Without Tray
170 x 419 x 410
COLOR
Color
White
WATER SUPPLY
Ambient
Instant
Hot
Instant
Cold
Instant
FILTER
Type
UF (Ultra Filtration)
Stage
4-STAGE ALL PURI FILTER SYSTEM
· 1st – Remove 9 types of heavy metals
· 2nd – Removal of various germs and fine particles
· 3rd – Remove Norovirus (99.99%)
· 4th – Removal of harmful contaminants
MAINTENANCE
Service Type
Self-Service / Regular Visit
HYGIENE
Hygiene
Total Self-Service
· Auto Sterilization (Internal Sterilize, Outlet Sterilize)
· Easy Filter Replacement
· Filter Subscription
UV-LED Sterilization
Stainless Steel Water Pipe
CONVENIENCE
Hot Water Control
40℃, 75℃, 85℃
Volume Control
120ml, 250ml, 500ml, 1000ml
Others
Efficient Energy Saving
4 Directions Moving Tap
· Up & Down Auto Moving Tap (Auto Cup Sensing)
· Left & Right Moving Tap
Child Safety Lock Function
17cm Slim Design
Flexible Installation (Horizontal / Vertical)
Filter Change Alert
Voice Guidance
LG ThinQ™
COMPRESSOR
Compressor
Inverter Compressor (10 Years Warranty)
FAQ
Q.How do I sterilize the water outlet?
2. Place a container with a capacity of 300ml or greater below the water outlet.
3. When the container larger than 300ml has been prepared and placed, press the Dispense Water button. The sterilization process will take about 10 minutes. *Hot water will be dispensed about 7 minutes later. Please ensure that this is inaccessible by children.
4. Once the sterilization of the water outlet is complete, please discard the hot water dispensed into the container.
Q.How do I sterilize the water pipe?
The water pipe will be automatically sterilized once per week, and on-demand sterilization can be performed manually.
To sterilize the water pipe, press and hold the Internal Sterilize button at the top of the purifier for 3 seconds.
*The scope of high temperature sterilization is limited to from filter to the pipe that runs from the filter to the water outlet.
Q.How do I change the scheduled time for the water pipe sterilization?
1. In the LG ThinQ™ App, press the water purifier icon.
2. Select the ‘>’ icon in the High Temperature Sterilization window, or select ‘Schedule high temperature water pipe sterilization’ under Settings.
3. In Schedule Sterilization, press the ‘>’ button.
4. Set the desired schedule time and press the Save button.
[How to change using product interface]
1.Press and hold the Internal Sterilize + Outlet Sterilize buttons for 3 seconds.
2. To change the date, press the ‘Outlet Sterilize’ button. The date will change every time the button is pressed.
3. To change the time, press the ‘Internal Sterilize’ button. The time will change every time the button is pressed.
4. Set the desired schedule time and press and hold the ‘Dispense Water’ button for 3 seconds.
*All steps have voiced instructions
*If no button is pressed for more than 30 seconds, the feature will be disabled without changing the settings.
※The feature to change the sterilization schedule time is only available for the products manufactured after February 2022.
Please check if the feature is explained in the “Note” sticker attached on the product.
If the product does not have a “Note” sticker, use the ThinQ app to change the sterilization schedule.
Q.The water pipe sterilization and water outlet sterilization features are not working.
Q.How do I replace the product filter?
2. Push the moving tap to the end of left or right and open the filter cover.
3. Grab the filter and lift it 90 degrees, and then turn it counterclockwise to separate it.
4. Insert the filter and turn it clockwise.
5. Place the filter cover on again. The filter cleaning process takes about 7 minutes.
6 When the filter cleaning is complete, press and hold the Cold Water button for more than 3 seconds to reset the filter usage count.
Q.Filter cleaning is not working.
Do not close the source water valve, and leave it open while changing the filter. Close the filter cover to proceed with the filter cleaning process.
Q.How do I set the sound settings and adjust the volume of the purifier using the smartphone app?
2. Press the ‘ⓘ’ icon at the top-right corner of the screen, and press the Settings window.
3. In the Settings, select the product sound setting ‘>’ icon.
4. When ‘Use’ is selected, the ‘Button Sound’ and ‘Water Dispense Voice’ can be set.
5. Select the ‘>’ icon of Control Volume to adjust the volume.
Q.I can’t mute the sound.
Q.The draining tray won’t go back in.
Please separate the tray while facing the front of the purifier.
If the draining tray is separated while the it is rotated, check the joining section (locking hole) by sight and connect the draining tray in after rotating it sideways."
